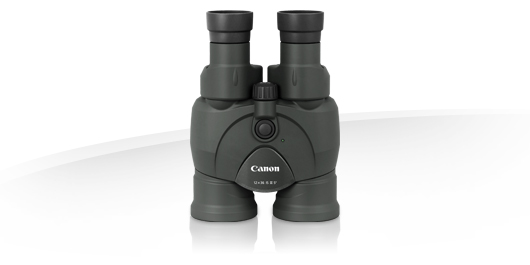

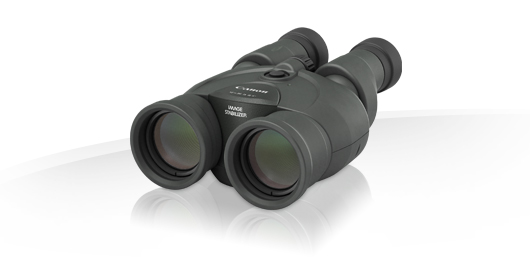

Canon 12x36 IS III Specifications

OPTICAL CHARACTERISTICS

Binocular type

Prism

Magnification

12x

Objective lens effective diameter

36mm

Filter Size

-

Real Field of View

Apparent Field of View

55.3°¹

Field of View at 1000m

87.5m

OPTICAL CONSTRUCTION

Objective lens construction

2 elements in 1 group

Eyepiece lens construction

5 elements in 4 groups

UD lens

-

Doublet Field Flattener

Yes

Exit Pupil diameter

3.0mm

Eye relief

14.5mm

Prism type

Porro II prism

Lens coating

Super Spectra coating

FOCUSING AND DIOPTRIC CORRECTION

Focusing system

Object lens movement

Focusing method

Manual focus

Dioptric correction method

Dioptric correction ring

Dioptric correction range

+/- 3.0m-1 (dioptre)

Closest focusing distance

6m

IMAGE STABILIZER

Image Stabilizer system

Vari-Angle Prism

Correction angle

+/- 0.8°

Shake detection system

2 Gyro sensors

Image Stabilizer activation

Push button switch

Power source

2 x AA size batteries

Battery life

+25°C: approx 9 hours


-10°C: approx 1 hour (using alkaline batteries)¹

Battery level indicator

Yes (LED)

PHYSICAL SPECIFICATIONS

Water Resistance

-

Rubber coating

Yes

Operating conditions

-10°C to 45°C, 90% humidity

Width

127mm

Height

174mm

Depth

70mm

Weight (Excluding battery)

660g

Footnote

¹ Apparent field of view based on the ISO 14132-1:2002 standard

¹ Based on Canon testing standards
