POWER
Guide No. (ISO100).meters
43 (105mm)
ZOOM
Zoom head
Yes
focal length coverage
24-105mm
Coverage with wide panel
14mm
Auto zoom for sensor size
Yes
FLASH MODES
Auto exposure control
E-TTLII/E-TTL
High speed sync (FP)
Yes
Manual / output settings
Yes - 1/1- 1/128
Manual steps
1/3 step
FLASH-RELATED FUNCTION
FE lock
Yes
Flash exposure compensation
Yes
Flash Exposure bracketing
No
Second-curtain flash sync
Yes
Modelling flash
Yes
Colour temperature info communication
Yes
WIRELESS FLASH
Transmitter
Yes
Transmission type
Radio
Signal range (Infra-red/Radio)
Indoors: 12-15m / 30m
Outdoors: 8-10m / 30m
Receiver function
Infra-red/Radio
Sender function
Radio
No of groups (Optical/Radio)
- / 5
No of channels (Optical/Radio)
- / 15
Remote Shutter Release
Yes
FLASH HEAD MOVEMENT
Up
45, 60, 75 and 90°
Left
60, 75, 90, 120, and 150°
Right
60, 75, 90, 120, 150 and 180 °
AF ASSIST
AF-assist beam
Yes
Number of AF points supported
1
AF-assist beam type
Infra-red / flash strobe
POWER SOURCE
Battery
4 x AA batteries
Minimum recycling time *
Approx. 3.5 sec
External power supply
No
CONSTRUCTION
Dust and water resistance
No
Mounting foot material
Metal
MISC.
Custom function
10 (8 personal functions)
Flash settings from camera menus **
Yes
External flash exposure sensor
No
PC terminal
No
Compatible Accessories
Off-camera shoe cord OC-E3
Bounce adapter SBA-E2
Color filter/Bounce adapter holder

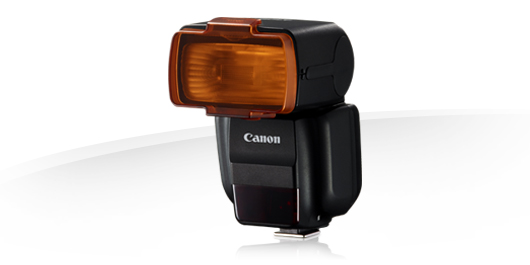

Color filter SCF-E2
Dedicated flash bracket
No
DIMENSIONS & WEIGHT
Size (W x H x D), mm
70.5 x 113.8 x 98.2
Weight (Excluding batteries), grams
295g
Working temperature range
0 °C - 45 °C / 32 °F - 113 °F
Working humidity
85 % or less
Disclaimer
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.
Subject to change without notice.
* time taken to recharge flash after full discharge using Alkaline AA batteries
** With compatible cameras only
