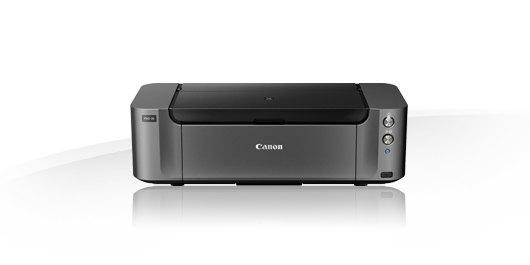

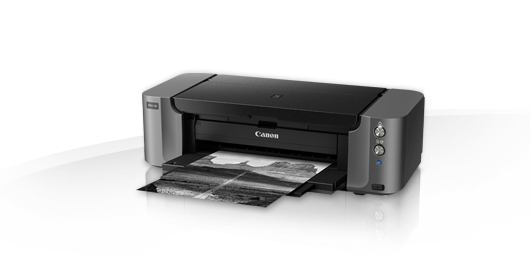

Canon PIXMA PRO-10 Specifications
PRINTER FUNCTIONS
Print Resolution
Up to 4800¹ x 2400 dpi
Print Engine
Inkjet, 10 Single Inks, LUCIA ink system with Chroma Optimizer, 4pl droplet size & FINE print head.
Photo Lab Quality Speed
A3+: Approx. 3m 35s PP-201, LU-101, PP-201 ¹
A3+: Approx. 5m 20s PT-101 ¹
Ink Cartridge Configuration
10 separate ink tanks:
PGI-72PBK (Photo Black)
PGI-72MBK (Matte Black)
PGI-72GY (Grey)
PGI-72C (Cyan)
PGI-72M (Magenta)
PGI-72Y (Yellow)
PGI-72PC (Photo Cyan)
PGI-72PM (Photo Magenta)
PGI-72R (Red)
PGI-72CO (Chroma Optimizer)
BLACK INK TANK LIFE
Ink Tanks Life
10x15 photo¹
Photo Black: 510 photos*
Matte Black: 1640 photos*
Grey: 165 photos
Cyan: 525 photos*
Magenta: 710 photos*
Yellow: 377 photos
Photo Cyan: 351 photos
Photo Magenta: 303 photos
Red: 1045 photos*
Chroma Optimizer: 165 photos
A3+ photo²
Photo Black: 44 photos
Matte Black: 202 photos*
Grey: 31 photos
Cyan: 73 photos
Magenta: 85 photos
Yellow: 85 photos
Photo Cyan: 89 photos*
Photo Magenta: 69 photos
Red: 144 photos*
Chroma Optimizer: 31 photos
*EstimatedSupplemental Yield
Media Type
Plain Paper, Fine Art Paper "Museum Etching" (FA-ME1), Photo Paper Pro Platinum (PT-101), Photo Paper Plus Glossy II (PP-201), Photo Paper Pro Luster (LU-101), Photo Paper Plus Semi-gloss (SG-201), Matte Photo Paper (MP-101), Photo Stickers (PS-101), Other Fine Art and Glossy Photo Papers ¹
Media Input
Rear Tray: Max. 150 sheets
Manual Feeder: 1 sheet
Direct Disc Print Tray: 1 printable CD, DVD or Blu-Ray Disc
Media Size
Rear Tray: A3+, A3, A4, A5, B4, B5, Letter, Legal, 25x30cm (10x12"), 20x25cm (8x10"), 13x18cm (5x7"), 10x15cm (4x6")
Manual Feeder: A3+, A3, A4, Letter, 36x43cm (14x17"), 25x30cm (10x12"), 20x25cm (8x10")
Media Weight
Rear Tray: Plain paper (64 to 105 g/m²), Photo paper up to approx. 300 g/m² (Canon special media)
Manual Feeder: Canon special media up to approx. 350g/m² and 0.6mm
DVD / CD Printing
Yes (software included)
Two Sided Printing
Available by manual operation only
Borderless Printing
Yes (A3+, A3, A4, Letter, 36x43cm, 25x30cm, 20x25cm, 13x18cm, & 10x15cm sizes)¹
INTERFACE AND SOFTWARE
Interface Type - PC
Hi-Speed USB 2.0 (B port)
Ethernet: 10/100Mbps (auto switchable)
Wi-Fi: IEEE802.11 b/g/n
Wi-Fi Security: WPA-PSK, WPA2-PSK, WEP, Administration password
Interface Type - Camera
Direct Print Port: Camera direct photo printing from PictBridge compliant digital cameras & camcorders
Interface Type - Mobile Phone / PDA
Android devices¹, iPhone, iPod touch and iPad ²
Apple AirPrint
Photo printing via USB PictBridge
Supported Operating System
Windows 8 (32 and 64bit)
Windows RT
Windows 7 (32 and 64bit)
Windows Vista (32 and 64bit)
Windows XP (32bit)
Mac OS X 10.5.8 - 10.8
Minimum System Requirements
Windows 7: 1GHz or faster CPU, 1GB RAM (32bit) / 2GB RAM (64bit)
Windows Vista SP1 or SP2: 1GHz or faster CPU, 512MB RAM
Windows XP SP3: 300MHz or faster CPU, 128MB RAM
Browser: Internet Explorer 6 or higher
CD-ROM Drive
Display: 800 x 600 or better
Mac OS X v10.7: Intel Core2Duo (or higher) CPU, 1GB RAM
Mac OS X v10.6: Intel CPU, 1GB RAM
Mac OS X v10.5.8: Intel CPU, 512MB RAM
Browser: Safari 3 or higher
CD-ROM Drive
Display: XGA 1024 x 768 or better
Driver Features
Borderless printing, Black and White Photo, Clear Coating settings, Manual Colour Adjustment, Collate, Multiple page per sheet print, Booklet print, Poster print, Scaled print (20-400%), Fit-to-Page print, Quiet Mode, Auto Power Off ¹
Software Included
PrintStudioPro ¹, Colour Management Tool Pro (download), My Image Garden with Full HD Movie Print ², Easy-WebPrint EX (download) ³ and Quick Menu
GENERAL FEATURES
Power Source
AC 100-240V, 50 / 60Hz
Power Consumption
Off: Approx. 0.3 W
Standby (wireless connection to PC): Approx. 2.3 W
Standby (all ports connected): Approx. 2.3 W
Time to enter Standby mode: 3 minutes
Printing: Approx. 17 W (wireless connection to PC) ¹
Temperature Range
Operating environment: 5° - 35° C
Humidity
Operating humidity: 10 - 90%RH (no dew condensation)
Acoustic Noise Levels
Approx. 33.9 dB(A) ¹
Dimensions (W x D x H)
689 x 385 x 215 mm
Weight
Approx. 20.0 kg
Disclaimer
All specifications subject to change without notice.
Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
Ink yield may vary depending on texts/photos printed, applications software used, print mode and type of paper used. For yield information see www.canon-europe.com/ink/yield.
All brand and product names are trademarks of their respective companies.
Microsoft, Windows and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Footnote
¹ Ink droplets can be placed with a minimum pitch of 1/4800 inch
¹ 11"X14" image printed with borders onto A3+ paper using default settings
¹ Declared yield value in accordance with ISO/IEC 29102. Values obtained by continuous printing.
² When printing ISO/JIS-SCID N2 pattern at 11"x14" size continuously on A3+ photo paper Pro Platinum (PT-101), with the default settings using Windows 7 printer driver and Photoshop CS4.
¹ Support for a range of non-Canon papers. ICC profiles and Art Paper Printing Guide instructions manual can be downloaded from http://software.canon-europe.com/
¹ When printing on Fine Art Paper top and bottom margins are minimum 30mm
¹ Canon PRINT app is available as free download from Android Market (not available in certain countries or regions). Requires connection over Wi-Fi network. Compatible with devices running Android 2.3.3 and later.
² Canon PRINT app is available as free download from Apple App Store (not available in certain countries or regions). Requires connection over Wi-Fi network. Compatible with devices running iOS 6.1 or later (All iPad models, iPhone 3GS & later, iPod touch 3rd generation & later)
¹ Some features available in Windows driver only.
¹ PrintStudioPro is a printing software plug-in for the Canon Digital Photo Professional (3.12 or later), Adobe Photoshop (CS4 or later), Adobe Photoshop Elements (8 or later), Adobe Photoshop Lightroom (2.7 or later)
² Full HD Movie Print is available for MOV and MP4 movie files created by Canon digital and video cameras. Requires installation of software bundled with Canon video or digital camera, from which the movie was captured. MOV files require: ZoomBrowser EX / ImageBrowser (version 6.5 or later), MP4 files require: ImageBrowser EX (version 1.0 or later).
³ Easy-WebPrint EX requires Internet Explorer 7 or later.
¹ When printing ISO/JIS-SCID N2 pattern on A4 size plain paper using default settings.
¹ When printing ISO/JIS-SCID N2 pattern on 10x15cm Photo Paper Plus Glossy II using default settings.
