Lenses for DSLR

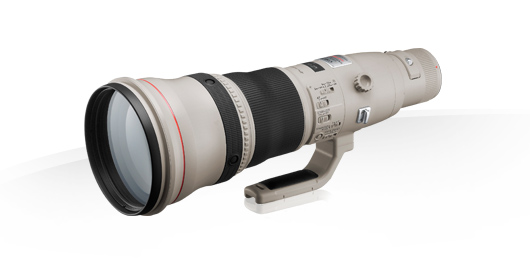

Canon EF 800mm f/5.6L IS USM

Specifications

Specifications in detail

Optical Features / Specifications

  • Angle of View (Horizontal, vertical, diagonal)

    2° 35’, 1° 40’, 3° 5’

  • Lens Construction (Elements/Groups)

    18/14

  • Number of Diaphragm Blades

    8

  • Minimum Aperture

    32

  • Closest Focusing Distance (m)

    6m

  • Maximum Magnification (x)

    0.14

  • Distance Information

    Yes

  • Image Stabilizer OIS1

    4-stops

  • AF Actuator

    Ring USM¹

Accessories

  • Lens Cap
    E-180C / E-180D
  • Lens Hood

    ET-155

  • Lens Case/Pouch

    Lens case 800

  • Magnification with Extension Tube EF12 II

    0.16-0.02

  • Magnification with Extension Tube EF25 II

    0.19-0.04

Physical Specifications

  • Filter Diameter (mm)

    52 Drop in

  • Max. Diameter x Length (mm)2

    163 x 461

  • Weight (g)

    4500g

¹ Mechanical full-time manual focusing built-in

  1. Tested under CIPA standards
  2. Lens dimensions when in retracted state
