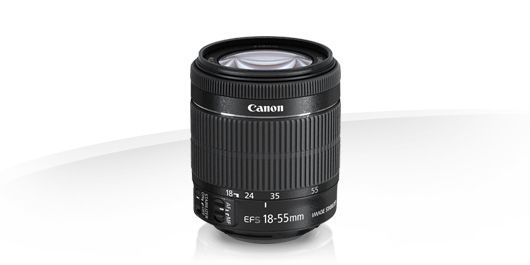

Canon EF-S 18-55mm f/3.5-5.6 IS STM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size

APS-C

35mm film equivalent focal length (mm)

29-88

Angle of view (horzntl, vertl, diagnl)

64º 30' - 23º 20', 45º 30'- 15º 40', 74º 20' - 27º 50'

Lens construction (elements/groups)

13/11

No. of diaphragm blades

7

Minimum aperture

22 - 38(36)¹

Closest focussing distance (m)

0.25

Maximum magnification (x)

0.36 (at 55mm)

Distance Information

Provided

Image stabilizer

4-stops

AF actuator

STM

PHYSICAL SPECIFICATIONS

Filter diameter (mm)

58

Max. diameter x length (mm)

69.0 x 75.2

Weight (g)

205g

ACCESSORIES

Lens Cap

E-58 II

Lens hood

EW-63C

Lens case/pouch

LP1016

Magnification w/ Extension Tube EF12 II

0.65-0.23¹

Magnification w/ Extension Tube EF25 II

1.00-0.51¹

Extender Compatiblity

NC

Disclaimer

Footnote

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angle

¹ Not compatible at wide angle

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angle

¹ Not compatible at wide angle
